Wireguard can provide secure connectivity to a home-server no matter where one is in the world. It is fine to run protocols like SMB and NFS over this tunnel because the channel is encrypted! Finally because Wireguard can run on a number of devices this can be used to network a phone, laptop, or even a remote workstation to a home-server, making network drives and services available.
I use Wireguard to access a single machine, not my entire LAN. I expose a
handful of VMs on the 10.0.10.0/24 subnet to remote peers which are given
addresses on the 10.0.20.0/24 subnet. This means I can isolate my filestorage
VM from my IPFS node and other networked software I may not trust to run on the
same machine.
The server that runs Wireguard also handles the packet forwarding with this file:
# [root@home-server /]# cat /etc/systemd/network/30-wired.network [Match] Name=enp5s0 [Network] Address=10.0.10.2/24 [Route] Gateway=10.0.10.1 Destination=10.0.10.0/24
Make sure to set net.ipv4.ip_forward=1 in sysctl otherwise packets will not be
forwarded to anything in the 10.0.10.0/24 subnet.
Server Setup
On the server where I run Wireguard and on each remote device I wish to network to that server I generate Wireguard private key like this:
wesl-ee@air2earth ~ > (umask 077; wg genkey > out.key) wesl-ee@air2earth ~ > wg pubkey < out.key > out.pub
On the server I copy the private key just generated and use it to complete the Wireguard config file
which I store in /etc/wireguard/wg0.conf. Notice that each peer I plan to
allow to access the server gets its own [Peer] section which details its
public key and its static IP.
# [root@home-server /]# cat /etc/wireguard/wg0.conf [Interface] Address = 10.0.20.1/24 ListenPort = 51871 PrivateKey = <HOME SERVER PRIVATE KEY> # air2earth [Peer] PublicKey = 4TtXu4l8gXyF4MrwlT/PjUBudzt/rvby0IPgtQrgpzw= AllowedIPs = 10.0.20.100/32 # win10 (divinity) [Peer] PublicKey = bEYTG4o7aCtFFck+2OG6979Iiv069eoo9tUZlR1eXxs= AllowedIPs = 10.0.20.101/32 # dry-your-eyes [Peer] PublicKey = nHcvdFsRSg3SuktoJBMbtyHgOKkWI7iB+Wktc/zNHWk= AllowedIPs = 10.0.20.102/32 # particle-arts (Macbook) [Peer] PublicKey = jTDK8OT53HbefiDSO+L/rs3HxK23sjNEwrAmwHHLi1I= AllowedIPs = 10.0.20.103/32 # nixos (divinity) [Peer] PublicKey = GQc4uVjH72axOP3DAjt/Z1bpoUkgOFd5113WgyM1UTw= AllowedIPs = 10.0.20.104/32
Remote Hosts Setup
On the client things look similar except only one [Peer], the server
configured above, is used. Generate a private key for each machine in the same
way one was generated on the server.
# [root@air2earth:/]# cat /etc/wireguard/wg0.conf
[Interface]
Address = 10.0.20.100/24
PrivateKey = <REMOTE HOST PRIVATE KEY>
[Peer]
PublicKey = 5xodOxP3JGfj9bqysb+/lg0UUSK7ig27flLlT5+1dRI=
AllowedIPs = 10.0.20.1/32, 10.0.10.0/24
Endpoint = <HOME SERVER PUBLIC IP>:51871
Usage
With Wireguard configured and hopefully running, one should be able to ping the
home-server IP on the Wireguard subnet, ie 10.0.20.1. Additionally 10.0.10.2
should be reachable if packet forwarding has been activated through sysctl.

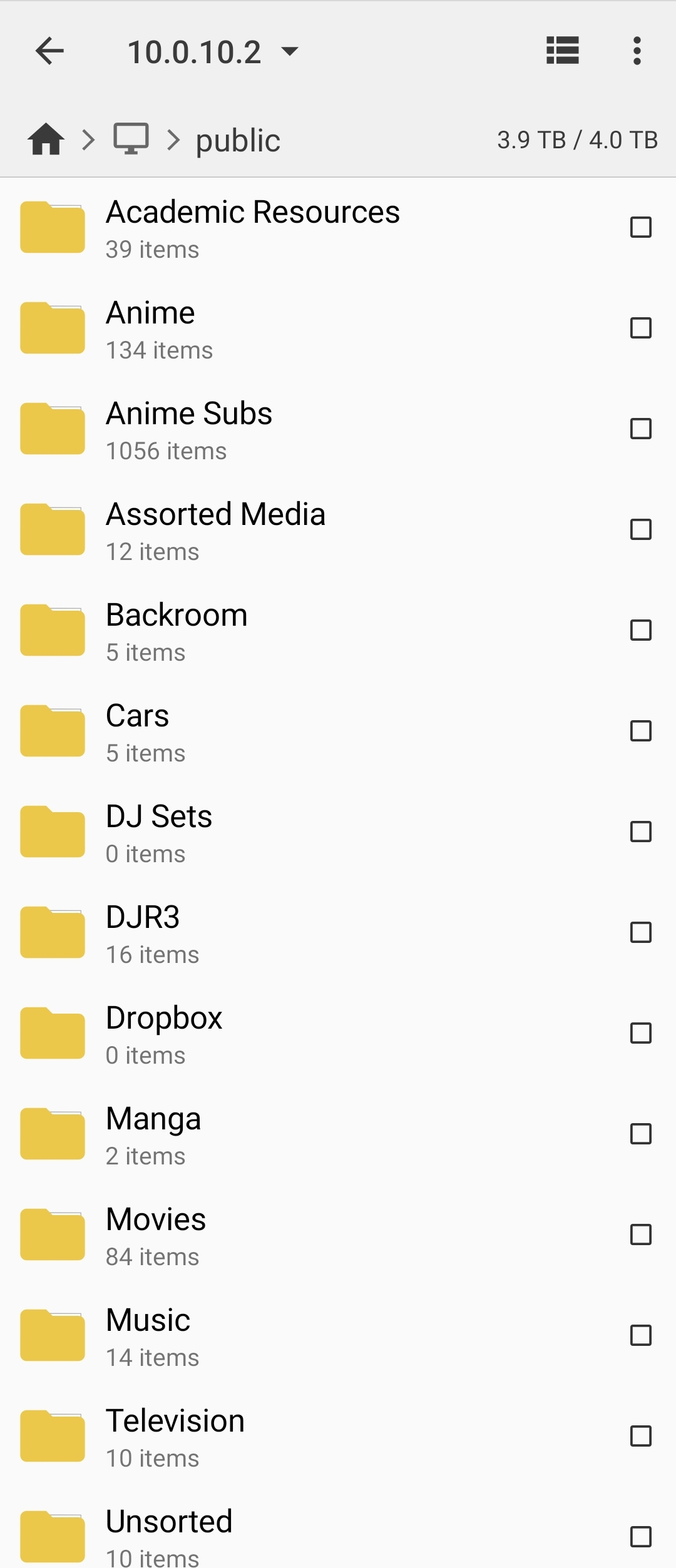

As mentioned above I use this as a secure way to access SMB + NFS shares remotely. This is an NFSv4 configuration while only allows Wireguard hosts to access shares:
# [root@home-server ~]$ cat /etc/exports /srv/nfs 10.0.20.0/24(rw,sync,crossmnt,fsid=0) /srv/nfs/steam 10.0.20.0/24(rw,sync,all_squash,anonuid=65534,anongid=65534) /srv/nfs/public 10.0.20.0/24(rw,sync,all_squash,anonuid=65534,anongid=65534) /srv/nfs/personal 10.0.20.0/24(rw,sync,all_squash,anonuid=65534,anongid=65534)
Because I am the only one using these shares I squash the UIDs + GIDs of new
files to simply be nobody:nobody.
