The video transmitter (VTX) unit on a drone gets very hot during normal operation. They are cooled by the rushing air around them while the drone is flying. But if the drone is not flying, the units can get very hot and shut down before they fry themselves. It's not likely a unit would get damaged like this (they are designed with safeties for overheating in mind) but if you're working on the drone in the headset, it is useful to be able to see it.

That's why for all my drones I assign a switch on my radio to set my VTX power to 25mW when I need, and otherwise transmit at max power. This makes it nice for flying nearby or when I need to be on the ground or bench for an extended period of time with the power on.

It's not a feature Betaflight exposes but with a few CLI commands you can configure it to do this.

First open Betaflight Configurator and connect the drone to it via (typically) USB.

Next identify the switch on your radio you want to toggle this behavior on. I'm using the right-most 2-pole switch on my Radiomaster Boxer (labeled SD) which maps to AUX4. I can know that it maps to AUX4 by pairing my radio and observing what channel changes as I throw the switch. As you can see below, AUX4 moves from 1000 and 2000 when I throw the switch down, then back to 1000 when I move it back.

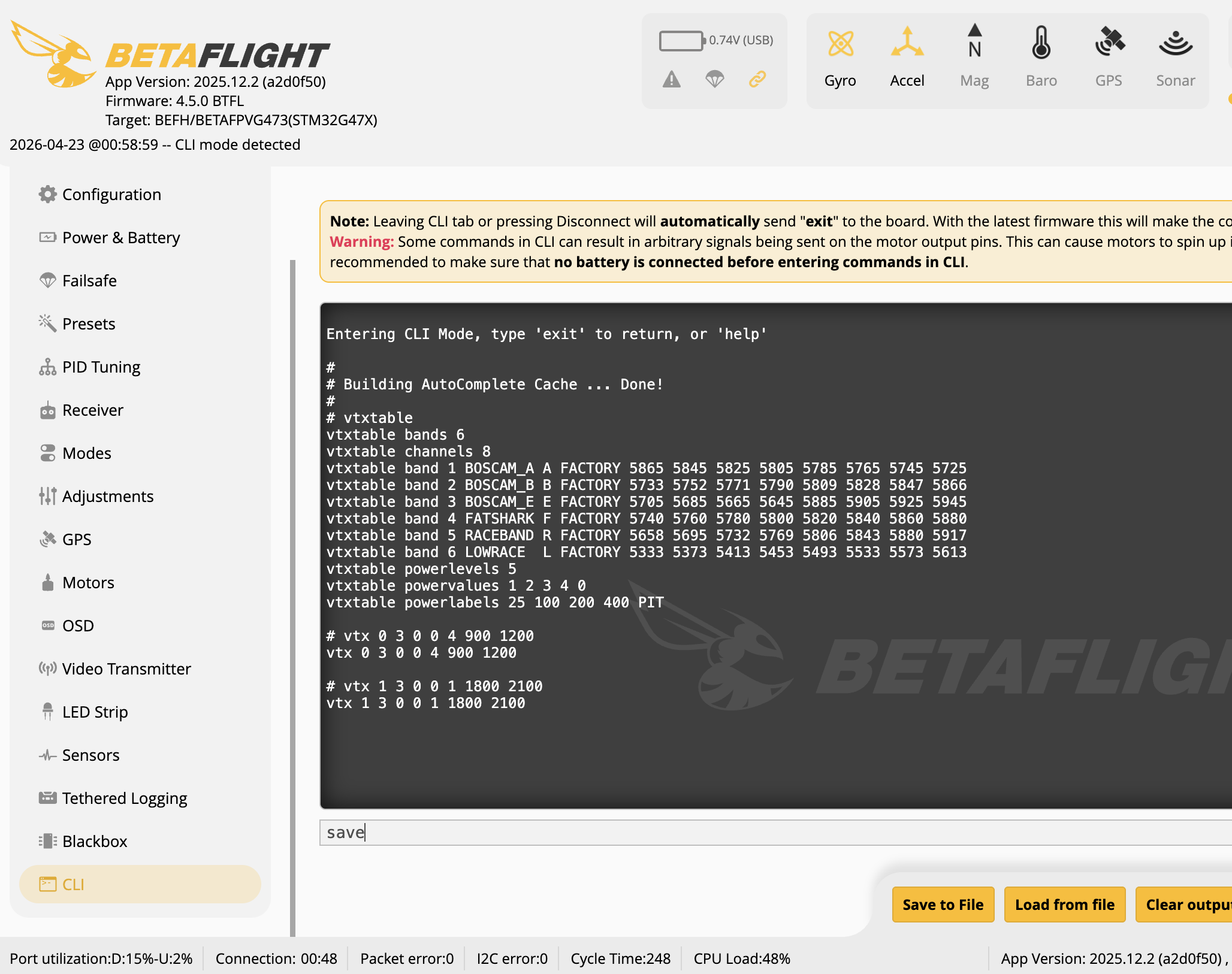

With this in mind, I can flip to the CLI tab and run the vtxtable command. This will list what values I can possibly set the VTX to transmit at.

# vtxtable

vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE  L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 1 2 3 4 0
vtxtable powerlabels 25 100 200 400 PIT

Importantly, their labels (25 100 200 400 PIT) are at the bottom, with their values just above. So 25mW is 1, 100mW is 2, 200mW is 3, 400mW is 4 and PIT is 0.

I want the switch to represent 400mW when at the 1000 value and 25mW when at the 2000. To do that I just run these commands in the same CLI box:

# vtx 0 3 0 0 4 900 1200

# vtx 1 3 0 0 1 1800 2100

The syntax of the command is

vtx <index> <aux_channel> <band> <channel> <power_level> <range_low> <range_high>

AUX channels are zero-indexed so for AUX4 the index is 3. Notice I use a wide range for the range_low and range_high for both (900 to 1200 and 1800 to 2100) to account for imprecise encoding. 4 and 1 are of course the levels I pulled earlier from the vtxtable command. After running those two commands, run save and the VTX table will be saved to the flight controller.

You can check this works on the drone itself by entering the OSD settings and watching the VTX power go between your two configured power levels as you throw the switch.
